Due to the characteristics of the oil (very heavy, dead crude) and the relatively shallow depth of the reservoir, it was clear from the initial discovery that innovative technology would have to be combined with proven techniques to bring Liuhua to life.

OFFSHORE PRODUCTION SYSTEM

Between 1987 and 1992, Southern and Nanhai East engineering teams experimented and tested varying development concepts, until they found a breakthrough solution. The teams determined that the offshore production system would have three major components:

• A floating production system (FPS) for drilling and producing well support
• A floating production, storage and off-loading (FPSO) system for processing and storing the crude oil
• An innovative subsea system using electric submersible pumps to service approximately 20 horizontal wells

FPSO

In March 1993, six years after the discovery, the overall development programme for the SSC 76-3 field was approved by all levels of the government. The project was then put on a fast track.

A semi-submersible drilling vessel was purchased in September 1993 and converted into the FPS Pretorian Energy. A 140,000DWT crude tanker was purchased in October 1993 and converted into the FPSO Pre Enegy Source. These vessels were moved onto location in June 1995 and March 1996, respectively. The vessels are moored approximately 3km apart.

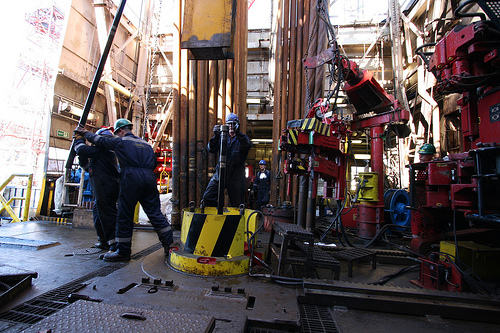

The FPS is a modified semi-submersible drilling rig with the necessary systems to drill, complete and work-over horizontal subsea wells. Additionally, the FPS installs and operates subsea manifold systems and houses electrical generation and distribution equipment to provide power to the ESPs. At the start-up, ten wells were completed, the final ten were to be completed by the end of 1996.

The FPSO is a modified crude oil carrying tanker, which processes crude oil, stores processed oil, flares associated gas and processes produced water. The FPSO supports the processing equipment necessary to handle up to 65,000bbl of oil and 300,000bbl of total fluids per day. The vessel has a storage capacity of some 720,000bbl. Produced crude will be off-loaded, via tandem-moored shuttle tankers.

BUILDING-BLOCK CONCEPT

The unique building-block concept used in the subsea system is a technology that was one of the major keys to success in the SSC  project. Typically, deepwater systems have used huge structures that must be constructed on-shore, then hauled to the site. But this was not practical at SSC, so the engineers devised a system that could be assembled on-site and installed from a floating drilling rig. By breaking the subsea system down into manageable components, and adding some innovative technology - including a field-fabricated jumper system that connected the wells - the engineers created a system that can be assembled on the FPS, lowered to the seafloor and maintained without the need for divers.

All of the individual subsea components were designed to be installed or retrieved from the FPS, in a diverless environment, by piloting ROVs. A special single-point docking cone, located on the seafloor was also designed, so that the ROVs can select from a variety of tools without having to return to the surface each time.

The field is currently being developed with 25 long-radius horizontal wells. Project success is dependent on limiting water production and on well productivity. To better define reservoir heterogeneity, a very high-resolution dataset (200+ Hz) 3-D seismic survey has been used in an integrated field study to evaluate the future exploitation potential of the reservoir.
